DR Suite Shielding Integration at Shenzhen Bao'an Traditional Chinese Medicine (TCM) Hospital
This project involves the expert design and execution of a specialized DR (Digital Radiography) suite for the Shenzhen Bao’an TCM Hospital. Our team delivered a high-performance radiation protection solution, ensuring absolute safety and clinical compliance within a premium medical environment.
The Challenge
The bespoke DR (Digital Radiography) Suite at the Shenzhen Bao’an TCM Hospital (Baowen Community Health Center) is designed to deliver high-performance diagnostic imaging capacity within an existing healthcare facility. This specialized suite is intended for high-frequency radiological examinations requiring the highest standards of radiation protection, structural reinforcement, and strict clinical regulatory compliance.
As part of this facility upgrade, OSIDEK was tasked with engineering and executing a turnkey radiation shielding solution that could integrate seamlessly into the existing architectural footprint. Unlike conventional new builds, the primary challenge of this refurbishment lay in safely retrofitting heavy-duty shielding—specifically 3.0mm Pb high-purity lead plates for ceilings/walls and 30mm Barium Sulfate (BaSO4) for flooring—while maintaining spatial integrity, fire safety strategies, and hospital-grade hygiene standards.
A further challenge related to balancing heavy-duty shielding automation with modern infection control. In hygienic diagnostic environments, standard wall finishes and traditional door frames are prone to harboring contaminants. This required a highly integrated approach, leading OSIDEK to deploy customized medical-grade cleanroom wall panels and bespoke motorized lead-lined hermetic sliding doors (3.0mm Pb). This engineered solution ensures absolute zero-leakage radiation protection while providing a seamless, sterile environment that adheres to the strict infection control standards of a premier TCM hospital.
Installation of Customised Radiation Protection Solutions
OSIDEK spearheads an innovative approach to medical facility upgrades and retrofitting. By collaborating closely with hospital estate departments and Radiation Protection Advisers (RPA), we seamlessly integrate next-generation imaging technology into existing architectural footprints while strictly adhering to the latest building regulations and infection control standards.
This proven expertise in complex refurbishments has cultivated a highly trusted, returning customer base, firmly establishing OSIDEK as the preferred turnkey engineering partner on the approved supplier lists of top-tier healthcare facilities and international contractors.

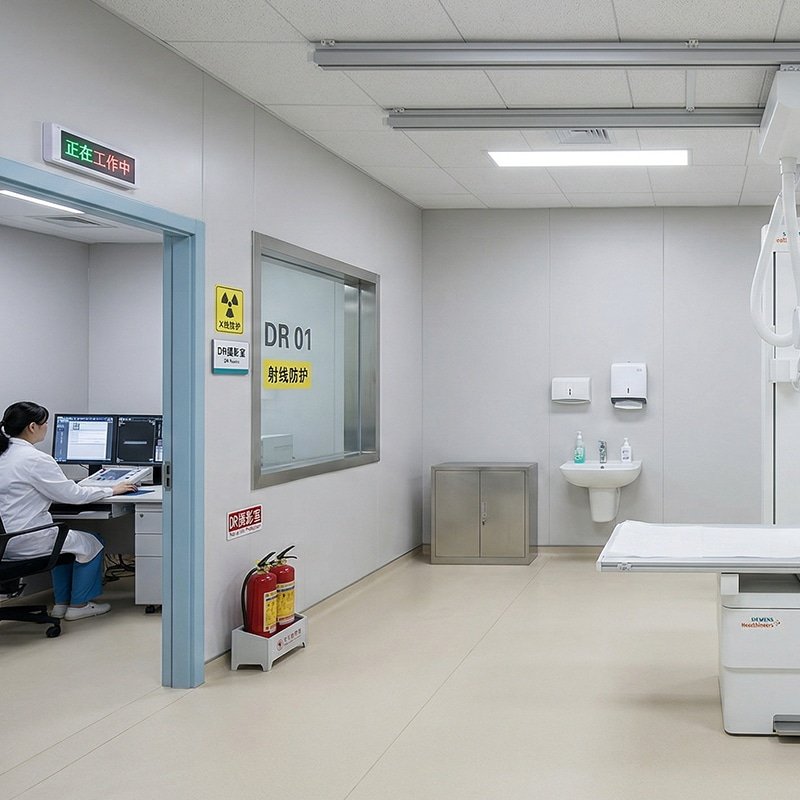

The Solution
OSIDEK collaborated closely with the technical and facility management teams at Shenzhen Bao’an TCM Hospital to specify, manufacture, and execute a comprehensive radiation shielding and cleanroom refurbishment package for their DR suite.
The scope included:
Heavy-duty structural shielding utilizing 3.0mm high-purity lead (Pb) plates for walls and ceilings, combined with 30mm Barium Sulfate (BaSO4) for comprehensive floor radiation protection.
Bespoke motorized lead-lined hermetic sliding doorsets, strictly calibrated to 3.0mm Pb equivalence for absolute clinical safety.
Medical-grade cleanroom finishes, featuring seamless antibacterial color-steel wall paneling to meet stringent infection control standards.
Integrated X-ray LED warning systems and heavy-duty automatic door operators engineered for high-frequency diagnostic workflows.
Full retrofitting and installation services seamlessly aligned with the spatial constraints of the existing operational health center.
All components were manufactured in-house by OSIDEK and deployed by our specialist engineering team to ensure continuity of responsibility, uncompromised performance assurance, and absolute zero-leakage compliance.
Specifications and Requirements
Wall & Floor Shielding
Wall & Ceiling: OSIDEK® high-purity lead plates with 3.0mm Pb equivalence.
Flooring: 30mm Barium Sulfate (BaSO4) radiation-proof cement screed layer.
Finishes: Seamless medical-grade color-steel antibacterial panels.
Complete with customized galvanized heavy-duty steel keels for structural integrity.
Doorsets & Visibility

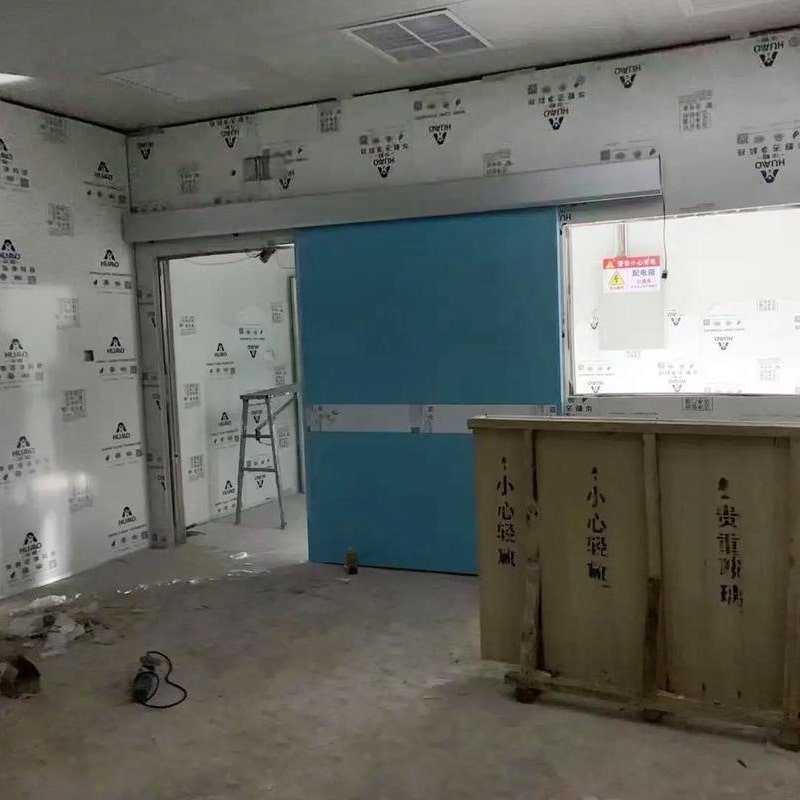

OSIDEK® Motorized Lead-Lined Hermetic Sliding Doorsets (Customized for DR Suite).
All doorsets supplied pre-hung with:
3.0mm Pb lead equivalence protection.
Flush-fit ZF3 high-lead observation windows (zero-distortion).
Stainless steel crash and kick plates.
Heavy-duty suspension tracks and hardware.
Integrated OSIDEK® flush-mounted “X-Ray On” LED warning lights.
Automation
Heavy-duty automatic sliding operators customized for dense 3.0mm Pb doors.
Full energy operation with anti-pinch safety sensors and non-touch activation (foot/hand sensor).
Compliance & Assurance
Designed and executed in strict alignment with National Health Commission radiation safety standards.
100% First-Time Official Acceptance Guarantee.
Comprehensive turnkey warranty on all OSIDEK-installed shielding and cleanroom products.
The Benefits of OSIDEK’s Turnkey Retrofitting Solution
This project highlights the immense value of expert technical alignment during complex facility upgrades. By executing this heavy-duty shielding refurbishment within an existing and operational community health center, the project achieved:
Seamless Heavy-Duty Retrofitting: Successfully integrated massive 3.0mm Pb and 30mm BaSO4 shielding safely into confined spaces without disrupting the existing architectural logic.
Uncompromised Infection Control: Clean, flush medical-grade color-steel surfaces fully aligned with the ultra-clean hygiene requirements of a premier TCM hospital.
Smooth Clinical Workflow: Effortless patient and staff flow via customized automated heavy-duty doorsets, perfectly balancing the massive weight of 3.0mm Pb with touchless operational safety.
Long-Term Durability & Compliance: A 100% zero-leakage environment engineered for high-intensity diagnostic imaging, ensuring lasting regulatory compliance.
It also reinforced OSIDEK’s reputation as a trusted turnkey partner for healthcare administrators and international contractors, built on execution transparency, engineering precision, and a shared commitment to patient safety and clinical excellence.
