Project Case of Hengyang Smart Medical Industrial Park – Newly Constructed CT and DR Imaging Rooms
This project represents a strategic collaboration between OSIDEK and the Hengyang Medical Industrial Park, specifically for the new CT and DR imaging rooms at Hengyang Pingkang Health Check-up Center Co., Ltd. The mission was to engineer a high-precision facility that integrates stringent infection control, advanced radiation protection, and the structural integrity required for complex modern surgical and diagnostic environments.
The Challenge

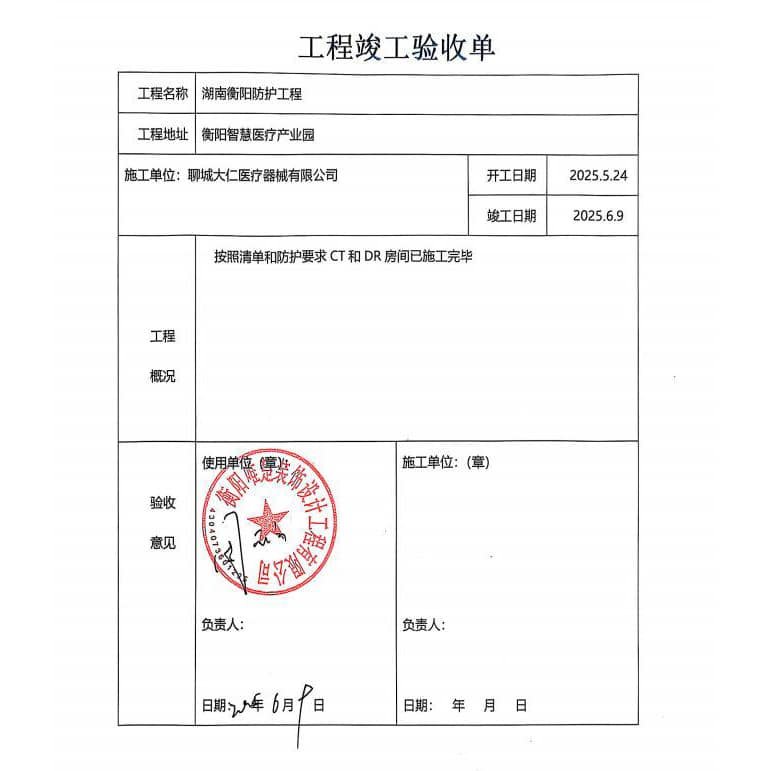

This project demanded strict adherence to radiation protection protocols for heavy imaging equipment in CT and DR imaging rooms, within an aggressive timeframe. Utilizing our precision prefabrication and optimized on-site deployment, our engineering team successfully completed the entire scope in just 16 days. The attached document, officially stamped and signed by the client, guarantees our uncompromising standard of “Design-to-Acceptance.”
The Solution

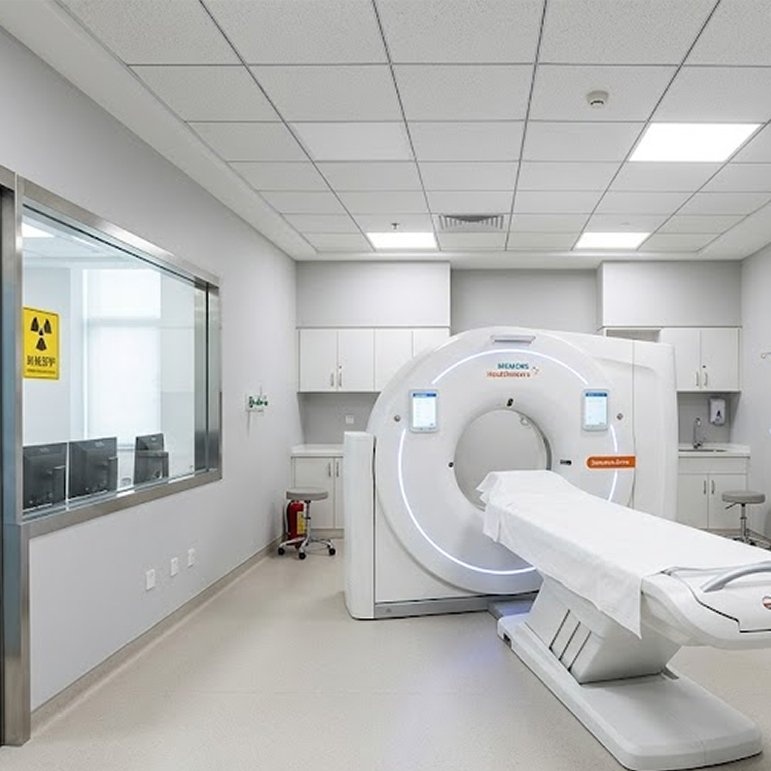

OSIDEK collaborated closely with the technical and project teams at Hengyang Smart Medical Industrial Park to specify, manufacture, and install a comprehensive turnkey shielding and architectural package for their new CT and DR suites.
The scope included:
-
Heavy-duty wall shielding utilizing customized galvanized light-steel keels and OSIDEK® High-Density Barium Sulfate (BaSO4) boards.
-
A range of bespoke motorized lead-lined hermetic doorsets, strictly calibrated for heavy imaging equipment.
-
Flush-mounted ZF3 Lead Glass observation windows with zero distortion.
-
Hospital-grade cleanroom finishes, including seamless antibacterial wall panels and integrated suspended ceilings. )
-
Rapid full installation completed within an aggressive 16-day timeframe. (
All components were manufactured in-house and installed by OSIDEK’s specialist team to ensure continuity of responsibility, performance assurance, and zero-leakage compliance.
Specifications and Requirements

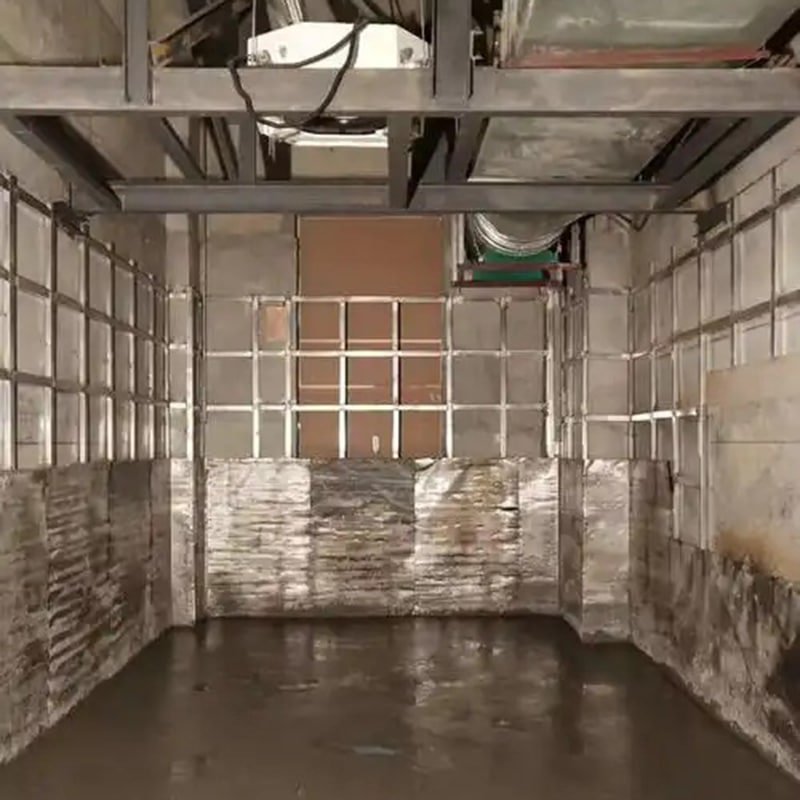

Structural Framework & Radiation Shielding
-
Base Framework: OSIDEK® Customized Galvanized Light-Steel Keel System
-
Core Shielding Layer: High-Density Barium Sulfate (BaSO4) Composite Boards
-
Joint Sealing: Seamless radiation-proof sealing technology to guarantee zero-leakage
-
Strictly calibrated to meet the exact requirements of 64-slice CT and DR radiation protocols
Radiation-Proof Doors & Windows System)
-
-
CT Suite Doors): OSIDEK® Motorized Lead-Lined Hermetic Sliding Doorsets
-
DR Suite Doors: OSIDEK® Lead-Lined Swing Doorsets
-
Visual Protection: Flush-mounted ZF3 High-Lead Glass observation windows
-
Doorset Hardware: Equipped with heavy-duty lifting hinges and stainless steel crash plates
-
Cleanroom Interior Finishes)
Wall Finishes): OSIDEK® Seamless Antibacterial Wall Panels
Ceiling Works: Integrated modular medical suspended ceiling system
Finishing Details: Clean, flush interfaces ensuring no dust accumulation for sterile environments
Electromechanical & Safety Facilities)
Automation: Heavy-duty automatic sliding operators with anti-pinch sensors and radar activation
Warning Systems): Integrated X-Ray working status LED warning lights
The Benefits of Installing Control Booths, Windows and Doorsets from Raybloc
This project highlights the value of integrated engineering, manufacturing, and rapid deployment. By entrusting the complete shielding and finishing package to OSIDEK, the project achievedRecord-Breaking Speed: A complete turnkey execution from heavy keels to antibacterial finishes in just 16 days, without disrupting quality.
Structural Reliability: Safe integration of heavy radiation protection within lightweight structural assemblies.
Infection Control Ready: Clean, seamless antibacterial surfaces aligned with stringent hospital hygiene requirements
Operational Excellence: Smooth patient and staff flow via automated heavy-duty hermetic doors.
It also reinforced a trusted partnership between OSIDEK and the facility management, built on execution transparency, unparalleled speed, and a shared commitment to patient safety.
About Osidek Radiation Protective Products
More than just a supplier, OSIDEK acts as a strategic partner to international contractors and hospital administrators. We demonstrate how advanced manufacturing, precision execution, and physics can align to build safer, smarter, and highly adaptable healthcare facilities for the future.
